How to set up the Yealink W70B Base Station with a compatible handset

Need to get your Yealink W70B up and running? This guide walks you through powering it on, connecting it to your network, and registering a handset like the W73H in just a few minutes.

Quick Setup & Register (W70B Base + Handset):

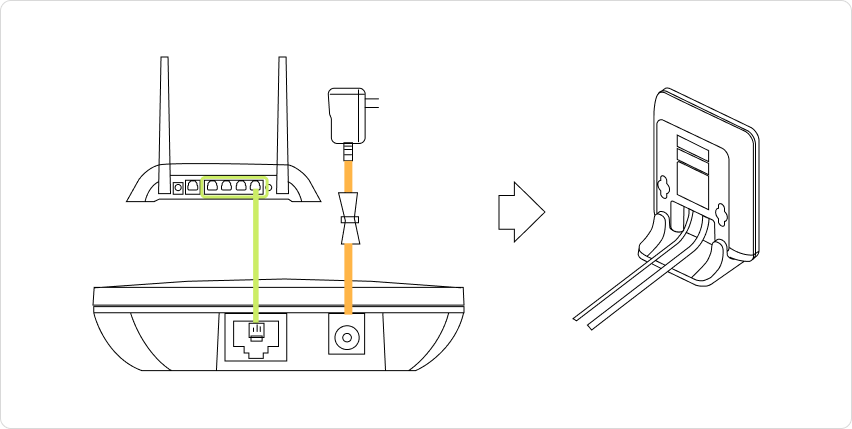

• Connect the Base Station

  • Option A: Use the included power adapter + Ethernet cable.

  • Option B (PoE): Use only the Ethernet cable if your switch supports Power over Ethernet (PoE).

• Mount the Base (Optional)

  • Use the stand for desktop placement, or mount to the wall (59mm screw spacing).

• Power On + Enter Registration Mode

  • Wait for the W70B to power up.

  • Press the Paging key on the base until the Registration LED starts flashing.

• Register the Handset

  • On the handset, press OK > Register Handset.

  • Select the base from the list and press OK again to pair.

• Confirm Success

  • All three LEDs on the base should be solid green once registration is complete.

For full details, including SIP setup and account assignment, see the Yealink W70B Quick Start Guide at the bottom of this article.
